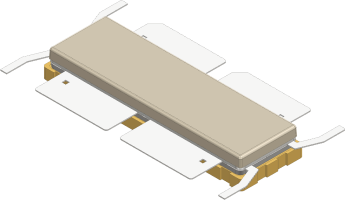

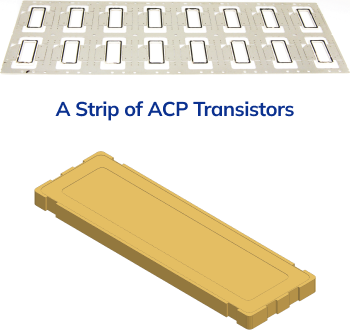

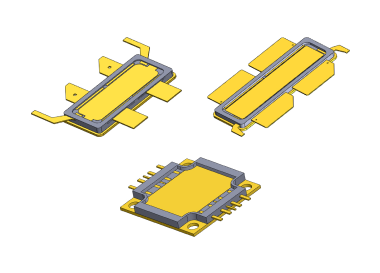

Air Cavity Plastic Packages
Overview
- - Plastic near hermetic air cavity packages and B-stage components deliver the highest performance and reliability in the industry.
| No. | Item | Materials | 열팽창 계수 [ppm/˚C] | 열전도율[W/(m.K)]25℃ (Z-direction) |
Process | Plating | |
|---|---|---|---|---|---|---|---|
| 150˚C | 300˚C | ||||||

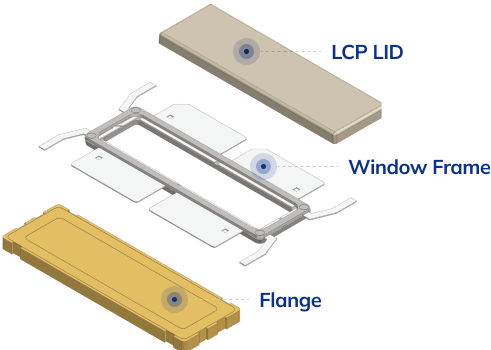

| 1 | Flanges, Carriers |
KCMC®12 | 11.05 | 9.01 | 320 | Stamping, Wire Cutting, etc. | Ni, NiCo, Ag, PdAu, Au, etc. |
| KCMC®20 | 9.12 | 7.69 | 291 | ||||
| KCMC®28 | 8.83 | 7.57 | 263 | ||||
| KCMC®33 | 7.83 | 6.96 | 241 | ||||
| KCMC®40 | 7.34 | 6.59 | 222 | ||||
| Copper, CuMo, CPC, etc. | - | - | - | ||||
Applications
- GaN, LDMOS, SiC 디바이스
- Aerospace and Defense
- Industrial, scientific and medical
- Automotive
- 5G Wireless Infrastructure
- Commercial and consumer cooking
- Various devices for automotive and Semiconductors
